PERI Monolithic Construction

A smarter way to build mass housing — in-situ, at scale, with real support.

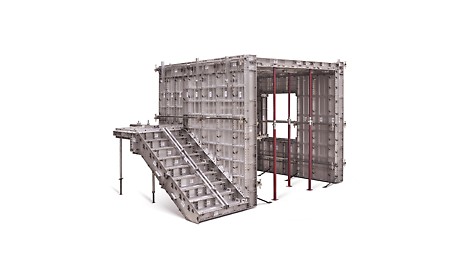

PERI Monolithic, produced by SNTO, is a state-of-the-art aluminium formwork system designed to optimize efficiency, precision, and safety. With its innovative panel design and flat tie system, it redefines speed and simplicity in construction, setting a new benchmark for modern building solutions.

The system delivers high performance with outstanding efficiency. Designed for speed and simplicity, it allows the simultaneous casting of walls, columns, slabs, beams, and staircases—significantly accelerating construction timelines and lowering overall costs.

For Faster, Safer, and More Efficient Construction

Formwork arrives prelabelled. Teams require minimal supervision. With no need for complex tying or adjustments, site crews can work faster and deliver higher output using fewer trades.

  • No crane requirement

  • No timber or plywood

  • No plastering or patching

  • Higher labour output with less supervision

  • Suitable for zone casting and short cycle times

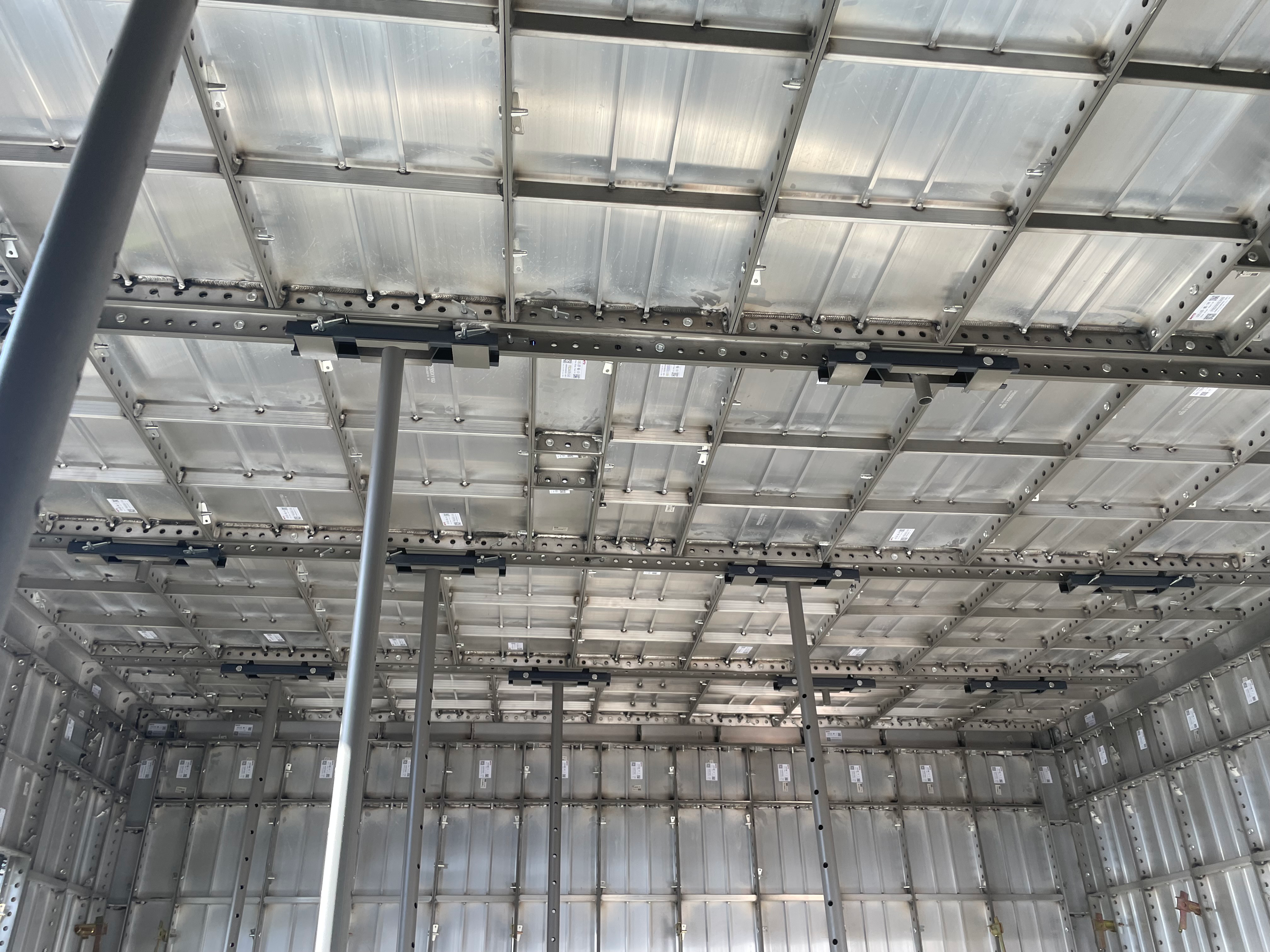

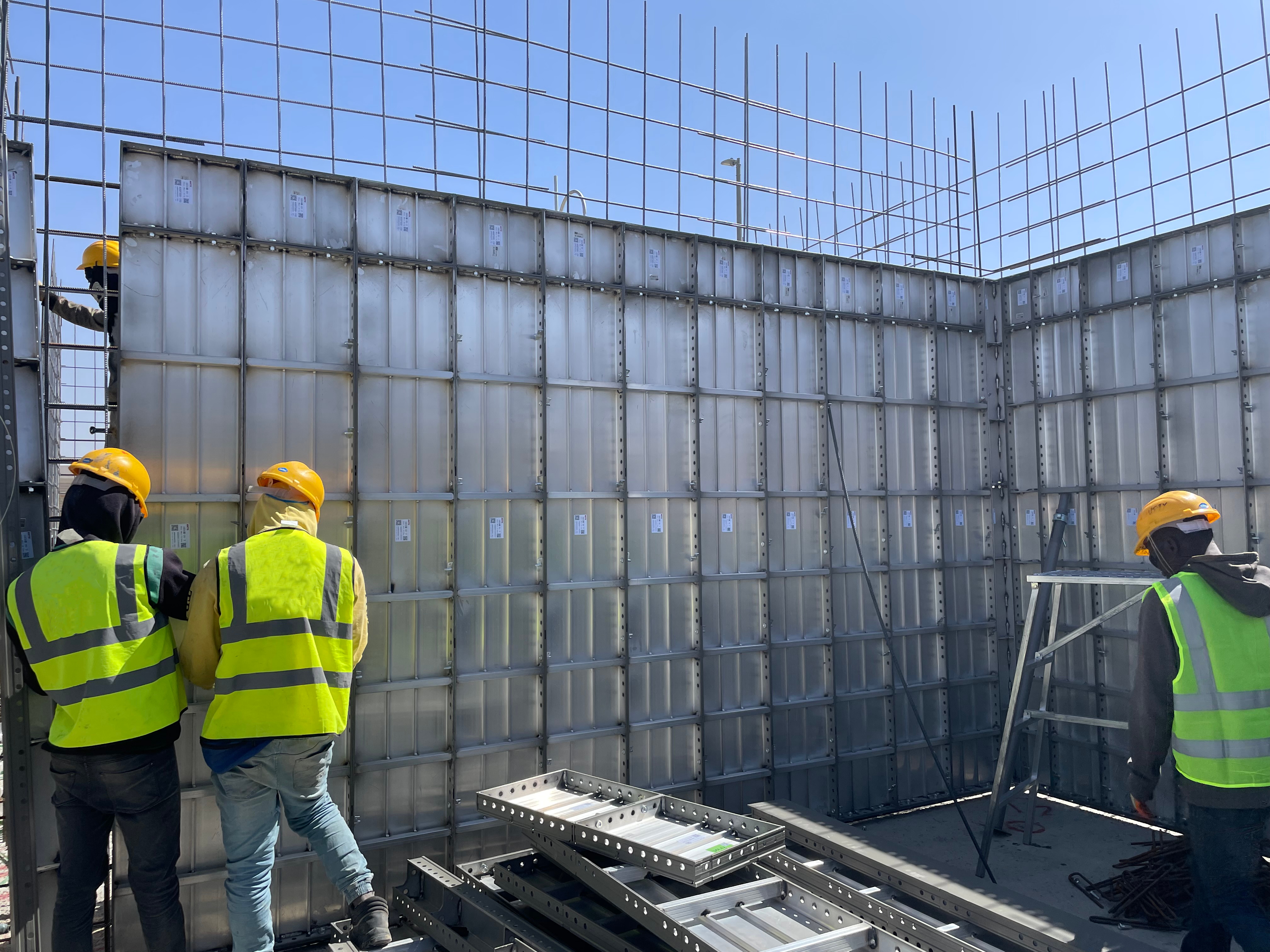

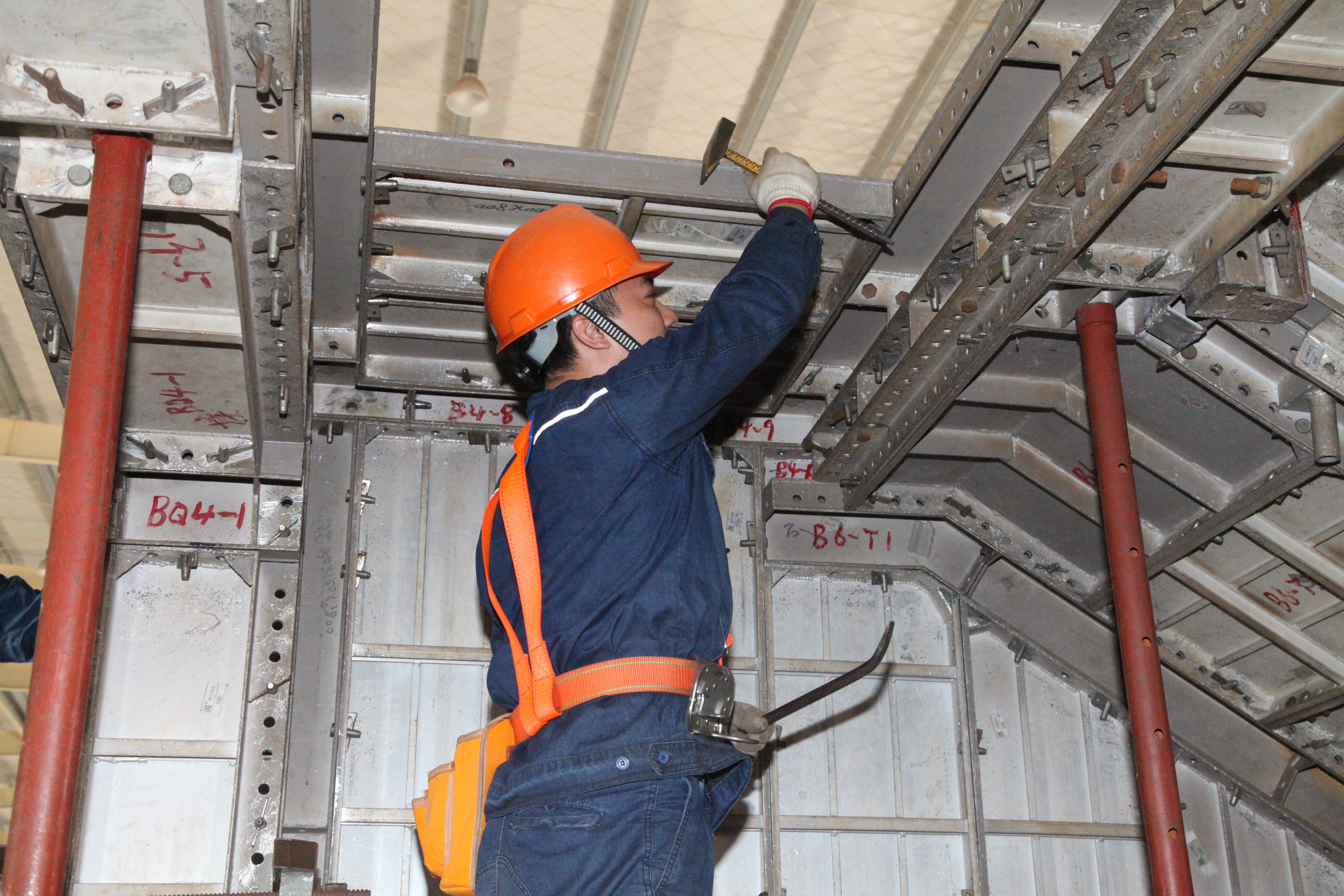

Monolithic Formwork in action

  • Its adaptable formwork elements suit a wide range of project requirements, offering both accuracy and flexibility on-site.

    Made from lightweight aluminum, the system enables easy and quick assembly without the need for cranes, helping reduce labor and equipment demands.

  • The system maximizes the use of standard panels for speed and consistency, while customised corner panels provide the flexibility to suit various designs, delivering the ideal balance of efficiency and adaptability on-site.

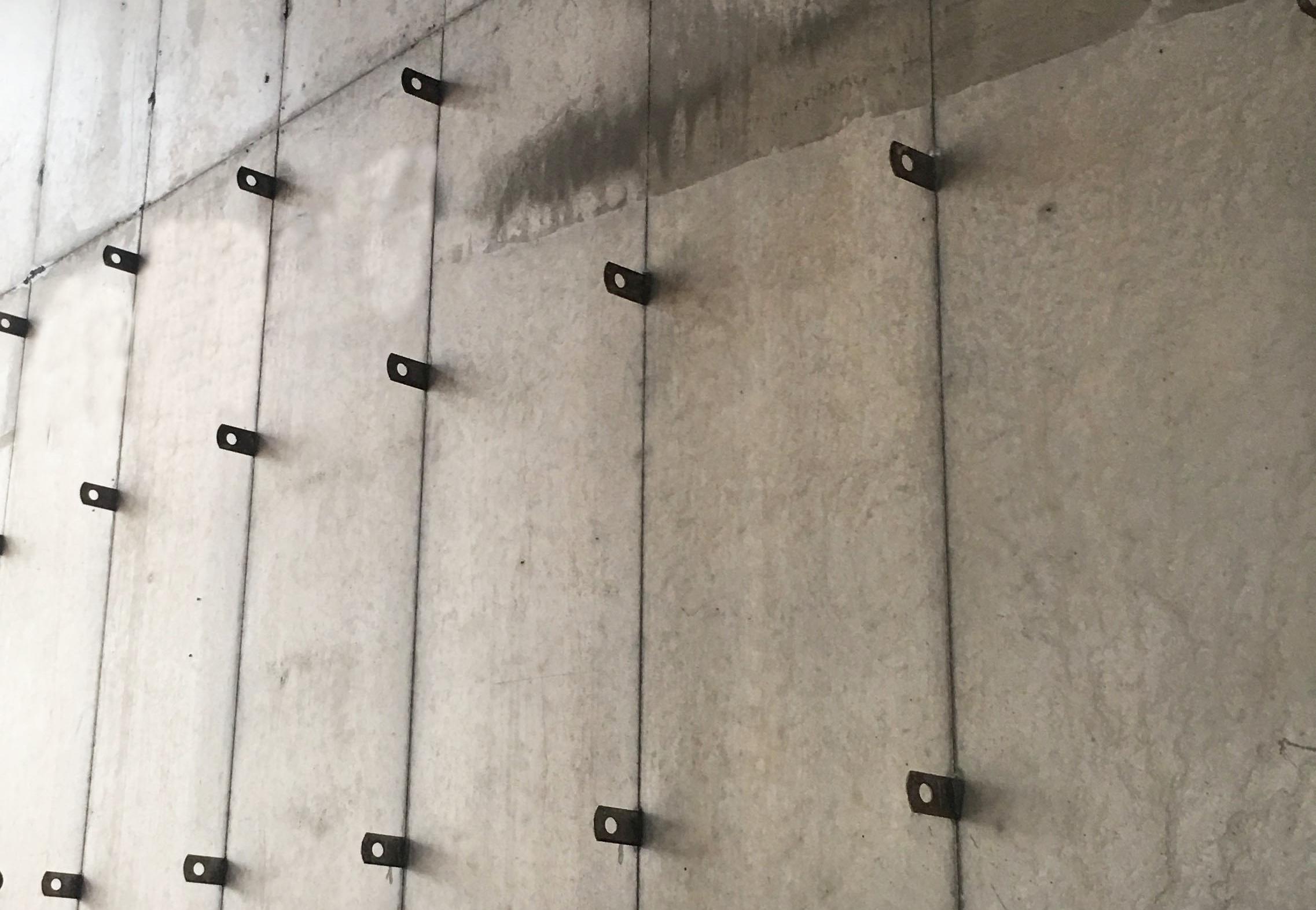

  • flat tie

    The system is designed to be efficient to use and as intuitive as possible. The panels require only 6 tie levels to handle 60 kN/m² concrete pressure up to a height of 3.3 m.

    After concreting, the flat snap tie can be easily broken 6 mm from the concrete surface, eliminating the need for grouting and curing.

Product data sheet
