The Modular 1,000kN System

HDS Heavy-Duty Shoring

The Modular 1,000kN System

HDS Shoring is our latest modular system specially designed for pre-cast segmental bridges. It facilitates total cost reductions for heavy duty applications and provides a simple easy use that suit to the required tower height through its Screw Jack and endplate adjustment.




  • High load-bearing capacity

    1,000 kN per leg with a safety factor of 2

  • Simple Connections

    Efficient assembly with only 2 standard connections

  • Highly versatile

    Flexible configuration of horizontals and verticals to facilitate all dimensions

  • Compatible

    Can work with other PERI systems for access and safety requirement

##product.information.applications.headline##

  • Efficient assembly with only 2 standard connections

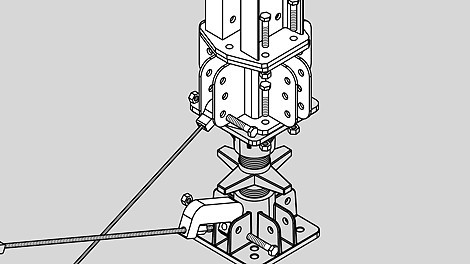

    Efficient HDS Connections

    Efficient assembly with only 2 standard connections

  • Extension between 410 - 620mm is realized to simplifies striking process

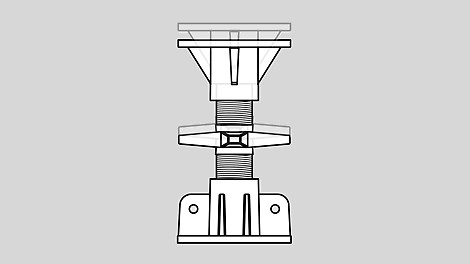

    Adjustable Jack with 1,000kN capacity

    Extension between 410 - 620mm is possible to simplify the striking process

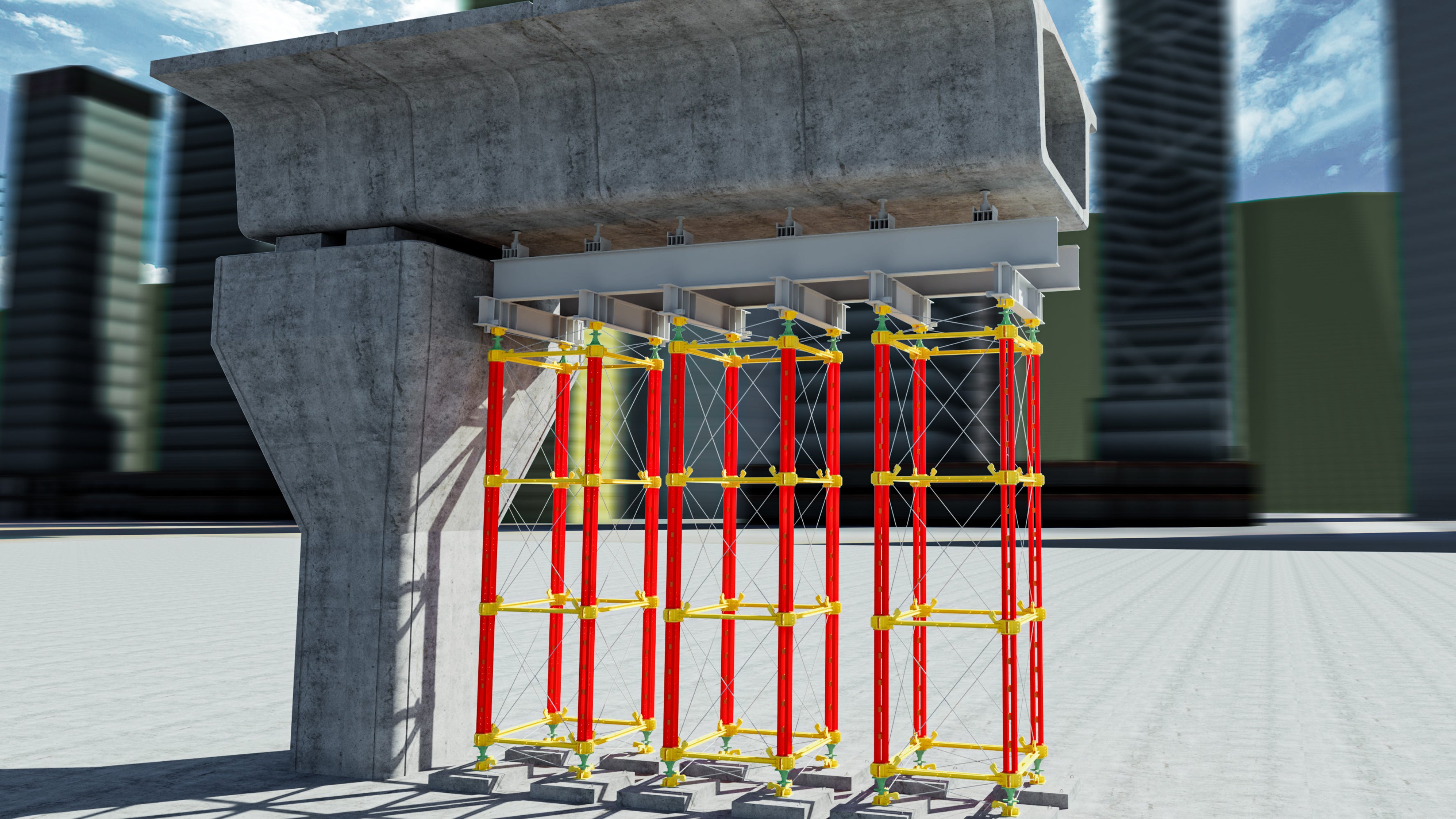

  • Highly suitable for the construction of pre-cast segmental bridges with high efficiency
    Pre-cast bridge construction

    A very efficient option for the construction of pre-cast segmental bridges

  • ##product.mediaVideo.itemHeadline##

Product Data Sheet

##product.information.relatedProducts.headline##

Interested in using HDS Heavy-Duty Shoring for your project?

Please contact us via phone: 1234567

Downloads

See our brochures below
